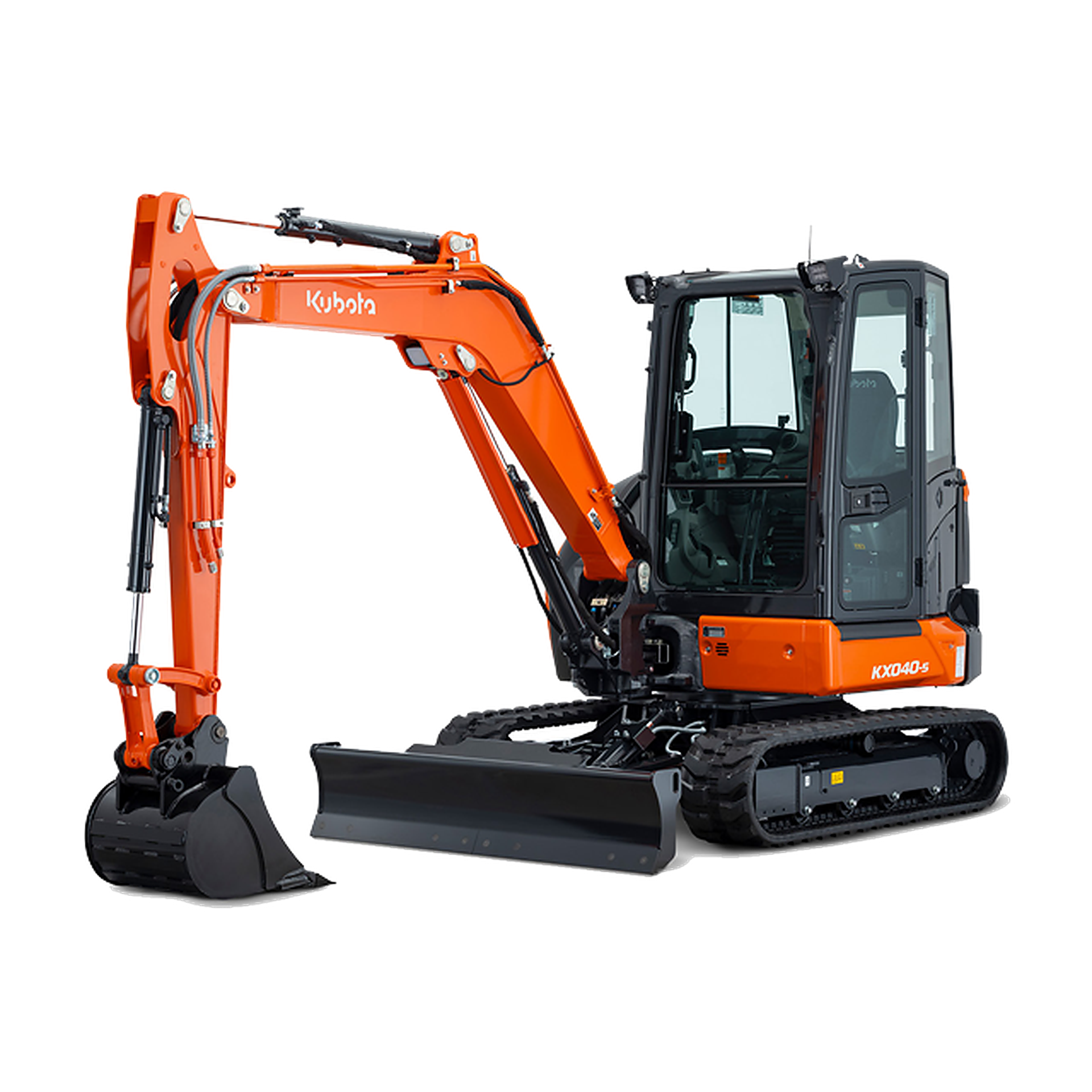

Kubota KX040-5 Mini Excavator

Engine & Performance

• Engine Model: Kubota D1803-CR-TE5-BH5 (canopy) / D1803-CR-TE5-BH6 (cab)
• Gross Power: 40.3 hp (30.1 kW) at 2,200 rpm
• Net Power: 39.1 hp (29.2 kW)
• Displacement: 111.4 cu. in. (1,826 cc)
• Cylinders: 3
• Travel Speed: Low range 1.7 mph, High range 3.1 mph

Weight & Dimensions

• Operating Weight: 10,417 lb (4,725 kg), depending on configuration
• Overall Length: 16 ft. 8.2 in. (5.085 m)
• Overall Width: 5 ft. 6.9 in. (1.70 m) standard blade; up to 5 ft. 10.9 in. (1.80 m) with applicable blade options
• Overall Height: 8 ft. 1.6 in. (2.48 m) / 8 ft. 2 in. (2.49 m), depending on configuration
• Track Shoe Width: 13.8 in. (350 mm)

Working Range & Capacities

• Max Digging Depth: Approx. 11 ft. 2 in. (3.40 m)
• Max Dumping Height: Approx. 12 ft. 9.5 in. (3.90 m)
• Fuel Tank Capacity: 17.4 gal (66 L)
• Auxiliary Hydraulic Flow: Up to 17.2 gal/min (65 L/min) on the primary circuit
• Main Hydraulic Pump Capacity: 29.1 gal/min (110 L/min)
