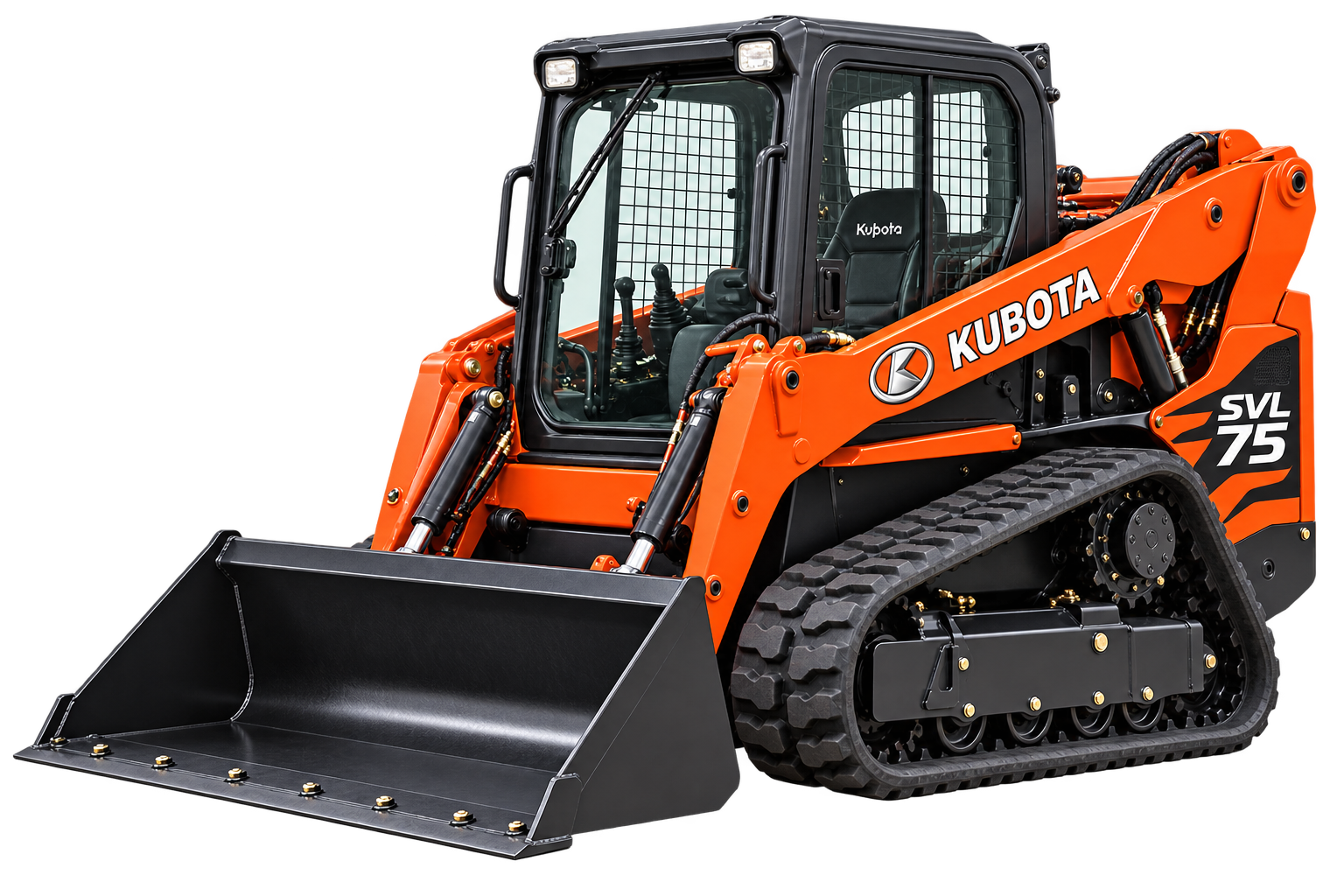

Kubota SVL75 Tracked Skid Steer

Key Performance & Engine Specifications

• Engine Horsepower: 74.3 hp gross diesel engine (no DEF required)
• Rated Operating Capacity (35% Tipping Load): 2,490 lbs
• Tipping Load: ~7,110 lbs
• Bucket Breakout Force: 6,191 lbs
• Bucket Hinge Pin Height: 122.7 inches
• Operating Weight: ~9,300 to 9,874 lbs (depending on configuration)

Dimensions & Ground Specs

• Travel Speed (Low / High): 5.6 mph / 8.6 mph
• Ground Clearance: 11.7 inches
• Ground Contact Pressure: 4.8 psi (with standard tracks)
• Track Width: 15 inches standard

Hydraulics & Features

• Auxiliary Hydraulic Flow: Standard ~19.2 gpm (High-flow options up to ~29.8 gpm)
• Cab Features: One-piece pressurized/sealed cab, 7-inch touch screen display with jog dial, and a 176° wide-angle rearview camera
• Smart Functions: Advanced Auto Downshift system and multi-function valve for simultaneous arm and bucket operations
