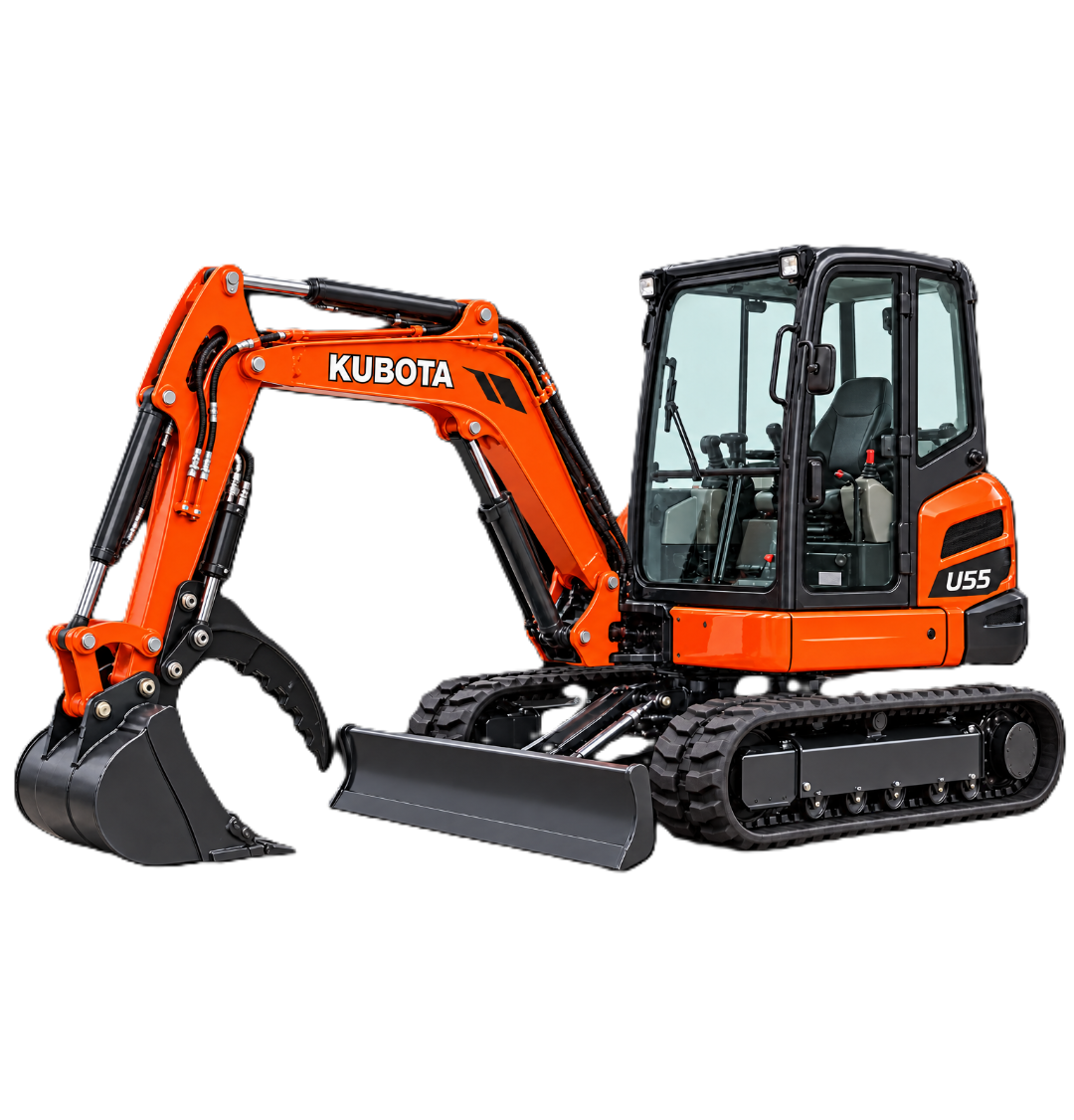

Kubota U55 Mini Excavator

Engine & Performance

• Engine Model: Kubota V2607-CR-E4 (or V2607-DI)
• Gross Power: 47.6 hp – 49.5 hp at 2,200 rpm
• Displacement: 159.6 cu. in. (2,615 cc)
• Cylinders: 4
• Travel Speed: Low range 1.8–2.0 mph, High range 3.1 mph

Weight & Dimensions

• Operating Weight: Approx. 12,200 lb (5.5 metric tons)
• Transport Length: 18 ft. 3.7 in. (5.5 m)
• Transport Width: 6 ft. 5.2 in. (1.96 m)
• Transport Height: 8 ft. 0.8 in. (2.55 m)
• Track Width: 16 in. (400 mm)

Working Range & Capacities

• Max Digging Depth: 11 ft. 10.3 in. (3.63 m)
• Max Digging Height: 18 ft. 3.7 in. (5.58 m)
• Max Dumping Height: 13 ft. 2.3 in. (4.02 m)
• Max Horizontal Reach: 19 ft. 6.1 in. (5.95 m)
• Fuel Tank Capacity: 18 gal (68 L)
• Auxiliary Hydraulic Flow: 19.9 gal/min
