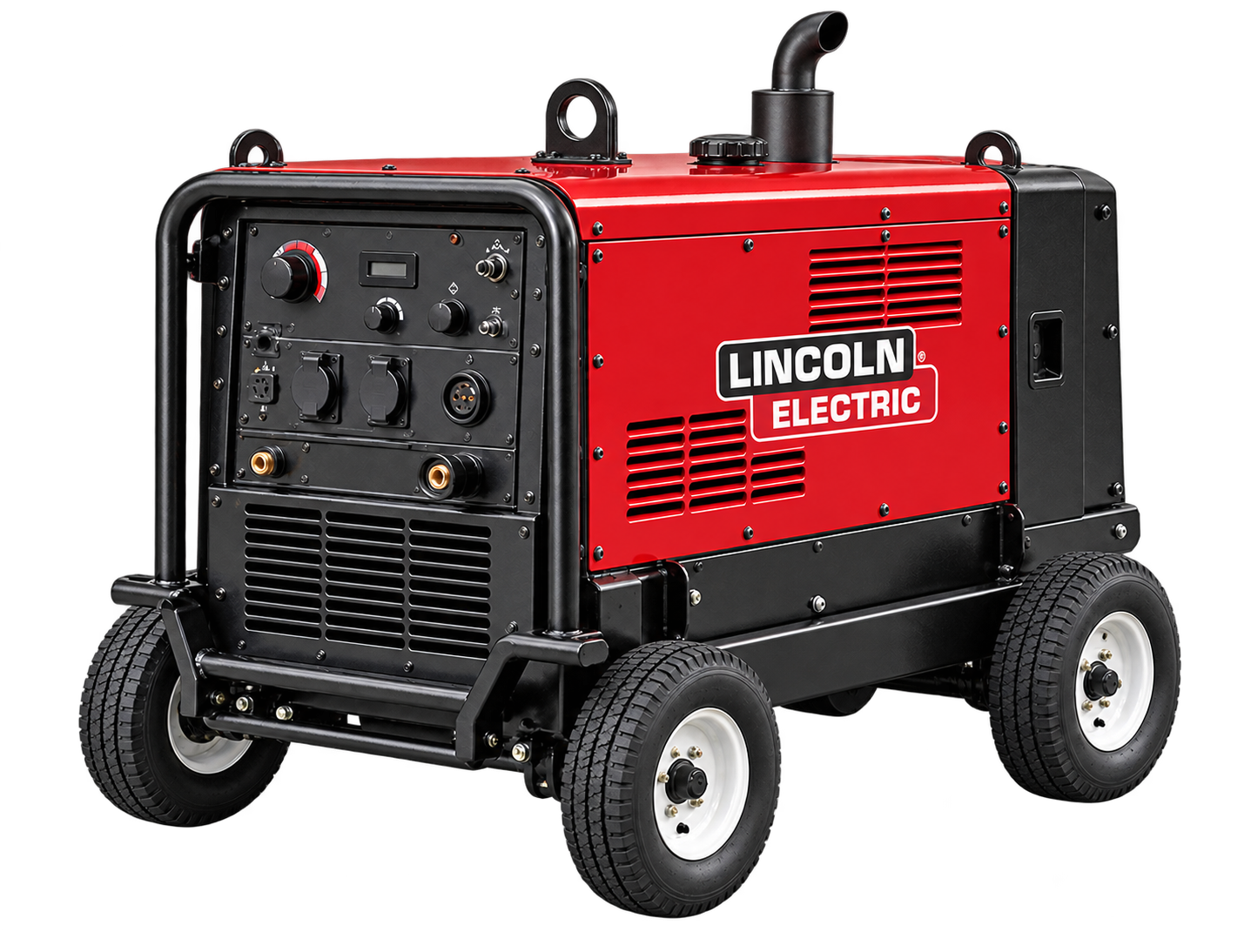

⚡ Welding Performance
- Output Range: 50–225A DC (CC–Stick / Scratch Start TIG) | 15–25V (CV–Wire)
- Rated Output (Current/Voltage/Duty Cycle): • 225A DC CC / 25V / 40% • 210A DC CC / 25V / 100% • 200A DC CV / 20V / 100%
- Processes Supported: Stick, TIG, MIG, Flux-Cored (requires optional accessories/feeders)
🔌 AC Generator Power
- Peak Output: 10,500 Watts single-phase
- Continuous Output: 9,000 Watts continuous
- Voltage & Frequency: 120/240V AC, 60 Hz
- Receptacle Types: NEMA 5–20R and NEMA 14–50R
Engine Specs
- Engine Type: Kohler OHV Command CH730 (2-cylinder, 4-cycle air-cooled gasoline)
- Horsepower: 23 HP @ 3600 RPM high idle
- Fuel Tank Capacity: 12 US gallons (45.4 Liters)
- Fuel Consumption: 1.5 gallons/hour at 210A DC (100% duty cycle)
- Oil Capacity: 2.0 quarts (1.9 Liters)
Physical Properties & Sound
- Dimensions (H x W x D): 30 in x 21.5 in x 42.3 in (762 mm x 546 mm x 1073 mm)
- Net Weight: 514 lbs (233 kg)
- Sound Level: 76.4 dBA at 23 feet (7 meters)
- Enclosure Rating: IP23 protection level
